Comprehensive Overview of Differential Oscillators

Electronics depend on oscillators to provide accurate clock signals for digital systems. Meanwhile, differential oscillators provide better phase jitter. Such oscillators may even have phase jitter as low as 60 fs rms for ultra-low phase noise applications, including high-frequency telephony and data transmission systems. Additionally, differential outputs minimize common-mode noise for better signal integrity and system stability.

Understanding Oscillators

Basics of Oscillators

Electronic devices need oscillators, which generate repetitive signals, to control functionality. While depending on the oscillator, the signals may be sine, square, or other waveforms. The major types include crystal, RC, LC, and oscillators. The piezoelectric qualities of quartz allow crystal oscillators to maintain high-frequency stability in GPS systems and digital timepieces. Differentiated oscillators use a differential output driver to decrease common-mode noise for high-performance, low-noise applications. For example, over 12 kHz to 20 MHz offset frequencies, differential oscillators might have phase jitter as low as 60 fs. The ultra-low jitter capability is essential in high-speed communication systems. That's where timing precision affects data integrity.

The Differential Oscillator Explained

Types of Differential Oscillator Output Waveform

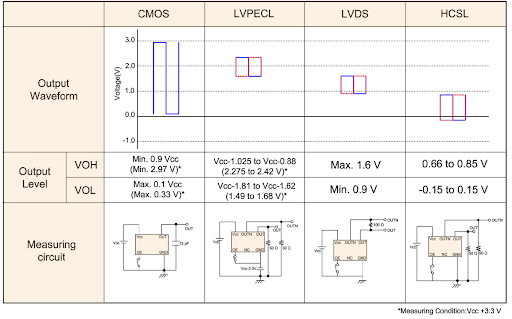

The differential output waveform, output level, and measuring circuit are shown below.

Advantages of Differential Oscillators

Differential oscillators improve signal reliability and noise immunity. Differential signaling suppresses common-mode noise in electrically noisy situations. In high-speed DDR memory systems, differential clocks decrease jitter and phase noise. It keeps data integrity during quick read/write operations. Differential signals also sustain greater SNR across longer distances for telecommunications data accuracy. In high-speed data networks, differential signaling cuts error rates more than single-ended signaling. Differential oscillators diminish ringing and reflections in high-frequency single-ended transmission lines for dependability. Thus, systems that need precise timing and minimal latency choose differential oscillators.

Common Applications

Telecommunications, data centers, and high-speed digital circuits employ differential oscillators for high-frequency, low-noise applications. In telecommunications, they provide exact timing for network switch and router synchronization for high data throughput and network stability. Data centers use differential oscillators to distribute clocks across server farms for efficient data processing and storage. They help with timing solutions in 10 Gigabit Ethernet and InfiniBand networks. Moreover, differential oscillators lessen jitter and enhance frequency stability for high-speed digital circuits in microprocessors and FPGA-based systems. Differential clocks may cut BER for system reliability in specific applications. So, contemporary high-speed electronic systems depend on differential oscillators.

Selecting the Right Oscillator for Your Application

Differential vs. Single-Ended Oscillators

The choice between differential or single-ended oscillators depends on application needs. Differential outputs, including LVPECL, LVDS, and HCSL, perform better in high-speed data transmission thanks to their noise immunity and lower EMI. Data centers and high-speed networks benefit from LVPECL's huge voltage swings and 5 GHz operation. In contrast, LVDS uses less power and is appropriate for moderate-speed applications like video transmission.

With fast switching rates and minimal jitter, HCSL suits PCI Express and high-performance computing. Simple, inexpensive, single-ended outputs like CMOS and TTL are perfect for low-frequency uses. CMOS operates up to 250 MHz and is used in consumer devices. TTL is still used in legacy systems. Hence, application-specific constraints, including power consumption, noise tolerance, and data rate, decide differential or single-ended oscillators.

Innovations and Future Directions

Such oscillators provide ultra-low latency connectivity and signal uprightness for immediate processing and edge computing in IoT and 5G applications. According to the study, machine learning for adaptive frequency management might lower power consumption by up to 30%. Last but not least, in future quantum computing, differential oscillators will offer accurate timing for qubit management and error correction for better computational accuracy.

Conclusion

So, differential oscillators provide greater jitter and noise protection in high-frequency, low-noise signal applications. Siward products boost telephony, data centers, and high-speed networking. Smart technology, quality control, and customer service are our priorities. Please browse our differential oscillators and other artistic products to find what meets your needs.
